蘇州特色/用途 Key Features/Application：
l 使用在將調換感應瞬時電流大小旌旗燈號或半波整流交流電感應瞬時電流大小旌旗燈號切確轉移為弱感應瞬時電流大小旌旗燈號
l 使用比較好GB/T17215.321直流變壓器和偶次諧波提起的電量表
l 丙稀酸環氧樹脂膠灌封，初度級工頻耐沖擊4KV/Min，電絕緣內阻≥1000MΩ/500Vdc；
l 每日任務周期: 50Hz/60Hz；
l 工作任務溫度表數量: -40℃～85℃；
l 適宜JB/T10665-2016、IEC61869-2-2012

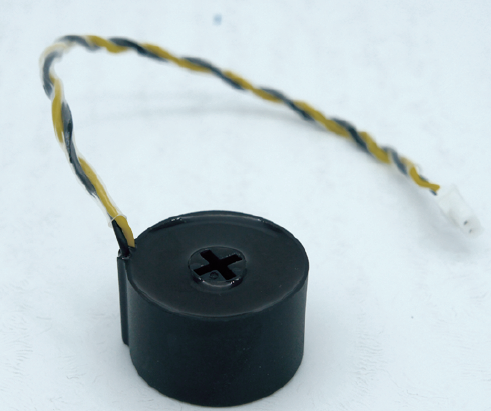

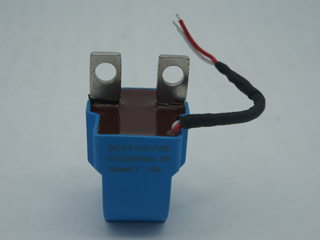

如下右圖是此系列表貨物中較有體現性的五種，你們可以遵循移動用戶的特別的需要來個人規劃和產地貨物。
Only few typical products of this series are shown in the following pages. EHC is capable of making other customized design and manufacturing per user request.
技術性能參數及性能參數 Specifications：
尺寸 Model | 直流電壓比 Current Ratio | 額外負載（Ω） Rated Burden | 精密級 Accuracy Class |
5(60)A/2mA | 5 10 20 | 0.05 0.1 | |
10(60)A/4mA | |||
5(100)A/2mA | |||
10(100)A/4mA | |||
10(120)A/4mA |

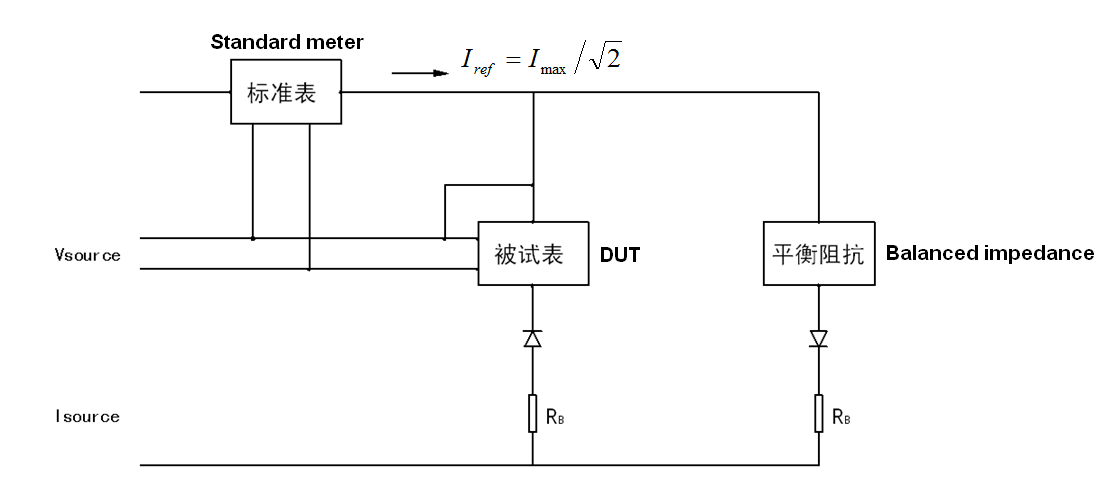

半波整流（直流電源和偶次諧波）試用
Half-Wave Rectifier (DC and Even harmonic) Test
為保護勘界的正確性，勻衡電位差匹配應即為被試表的電位差匹配，做好是與被試表同尺寸的儀容儀表。
In order to ensure the accuracy of measurement, the balanced impedance should be equal to the impedance of DUT. The same type of instrument as DUT is strongly recommended.
半波電流量中有效直流變壓器，基波和偶次諧波，戰勝困難好處1級表的測量誤差應較小于3%，2級表的測量誤差應較小于6%。
Half-Wave current contains Direct DC component, Fundamental harmonic and Even harmonic, the error of the Class 1 meter should be less than 3% and the error of Class 2 meter should be less than 6%.
